Now available is Pix Firmware Aurora version 3.0. The big news is this enables 4:4:4 recording over 3G SDI onto the Pix 240i external recorder. Offering the ability to record ProRes 4444 at 12 bit 330 mbps, this provides tremendous levels of quality at a an unheard of price-point. The Pix 240i can be bought in the UK for £2500 ex-vat.

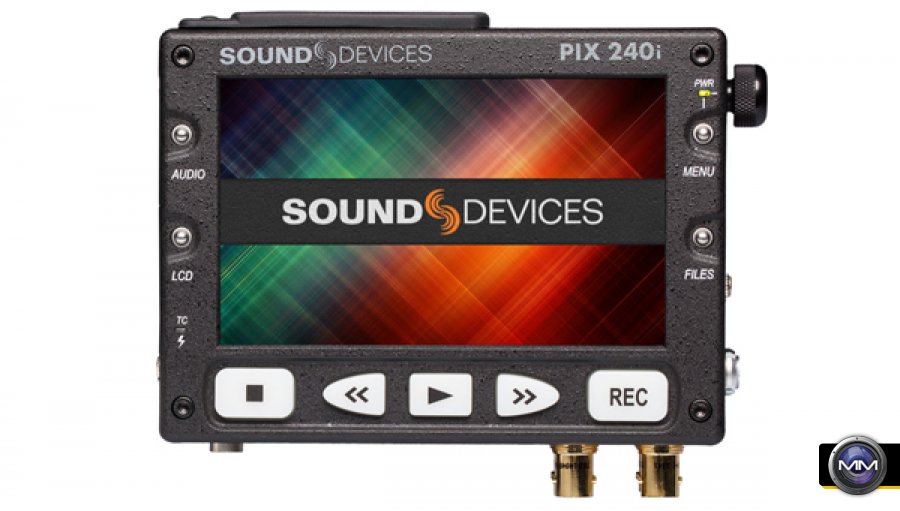

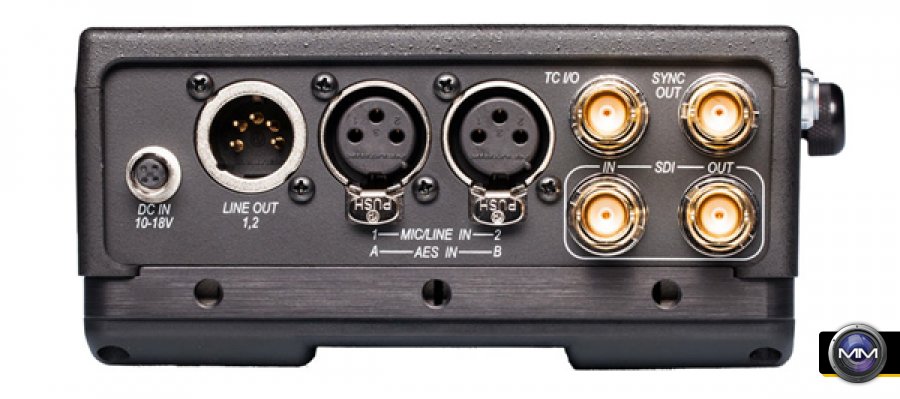

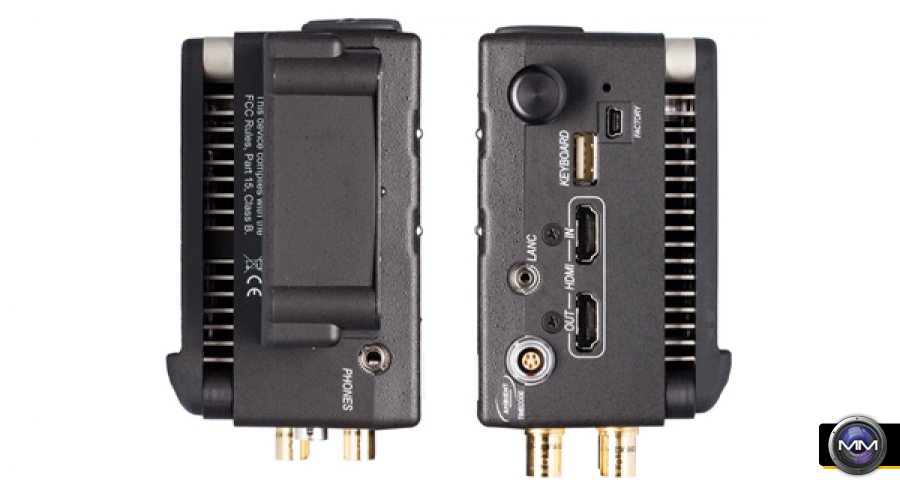

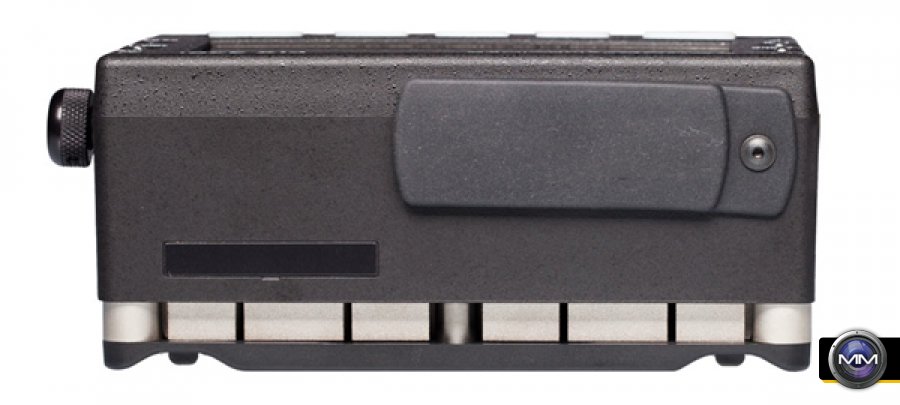

The PIX 240i records Quicktime files to SSD in either Apple ProRes or Avid DNxHD video formats. Files recorded in these intra-frame codecs are ready-for-editing directly from the recorder. For color-critical applications recording to Apple ProRes 4444 provides uncompressed alpha-channel transparency for superb chroma keying and grading performance.
Key Features
- 4:4:4, 12-bit recording
- 5-inch IPS (In-Plane Switching), glossy, 800×480 pixel LCD display
- Apple ProRes or Avid DNxHD codec at multiple data rates
- Quicktime file type
- 12-bit input and output video resolution
- Monitor functions including False Color, Zebra Stripes, 1:1 Pixel Mapping, Peaking Filter
- Built-in hardware based frame rate converter and de-interlacer
- Up/Down/Cross Conversion of 480i, 525i, 720p, 1080i, 1080p
- Aspect ratio conversion
- 3:2 Pulldown Removal
- High-accuracy built-in time code generator, with genlock and word clock output (PIX 240i only)
- Ultra low-noise (-128 dBu) mic preamps with phantom, limiters, line input (based on 7-Series recorders)
- Ability to defeat audio output delay while maintaining audio/ video sync on recorded file
- CompactFlash or removable 2.5-inch solid-state drive file storage with media spanning, UDF format for Mac OS and Windows compatibility
- Large, illuminated, tactile buttons for fast and simple menu control
- Simultaneous HDMI and HD-SDI output (PIX 240i only)
- 336-core, 32-bit massively parallel processor with 1.2 TeraOps for efficient video encoding
- 10-18 VDC and dual L-series battery powering
- Metalized, molded carbon fiber chassis
